Salient Features
• Grinding machines are suitable for grinding High precision thin & flat parts. In case where High Production of parts are required with high quality, precision & good surface finish.
• AC Servo Drive with Ball Screw for Y-Axis & Z-Axis for accurate & precise controls.
• Auto Centralized Lubrication with Re-circulating Filtration system.
• Auto grinding cycle equipped with Rough, Finish, Fine & Spark out Grinding cycles.
• Interlocks on Spindle Rotation/Magnetic Chuck.
• Auto parallel Dressing with Auto Compensation.
• Set different cross feeds during Rough, Finish & Fine grinding cycles.
• Each & every important messages/alarms during the Auto Grinding cycle regarding important factors like Coolant & Lubrication is clearly mentioned in the MOP.

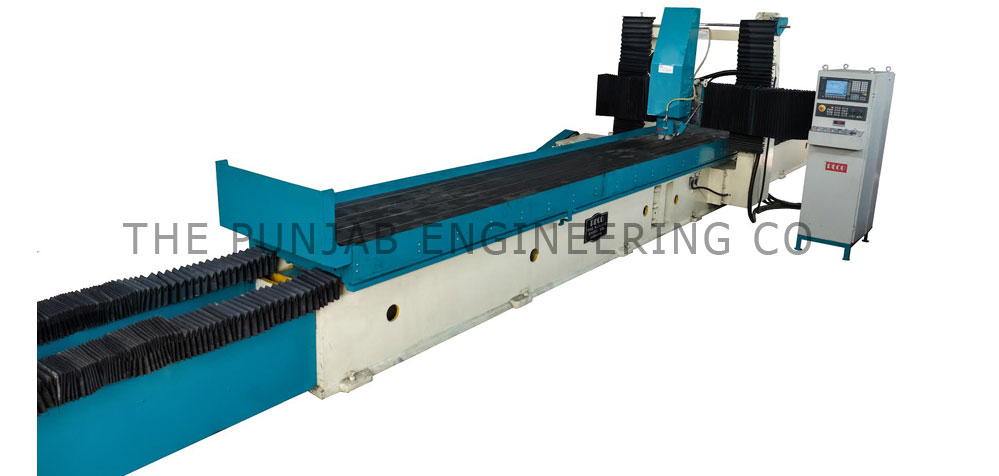

CNC Surface Grinding Machine | ||||||
CAPACITY | Units | PECO 4080 | PECO 6080 | PECO 60100 | PECO 60120 | PECO 80200 |
Grinding Surface of Table | mm | 1000 x 2000 | 1500 x 2000 | 1500 x 2500 | 1500 x 3000 | 2000 x 5000 |
Max. Longitudinal Travel | mm | 2200 | 2200 | 2700 | 3200 | 5200 |
Max. Cross Transverse | mm | 1100 | 1600 | 1200 | 1600 | 2100 |
Wheel bottom to Table (Vertical Head) | mm | 600 | ||||
Spindle Center height from table | mm | 850 | ||||
Max. height from Table top to bottom of standard wheel | mm | 500 | ||||
Hydraulic Table speed | m/min | 1.5-18 | ||||
CROSS MOVEMENT | ||||||
Clearance b/w the Columns | mm | 1200 | 1700 | 2200 | ||
Intermittent cross feed approx (Electro-Mechanical) | mm | 1-40 | ||||
Continuous cross feed aprrox(Electro-Mechanical | mm/min | 3000 | ||||
Hand feed per division | mm | 0.001 | ||||
VERTICAL MOVEMENT | ||||||
Rapid traverse approx | mm | 3000 | ||||
Hand feed per division MPG | mm | 0.001 | ||||
GRINDING WHEEL | ||||||
Horizontal Dimnesion (O.D x W x I.D) | mm | 510 x 100 x 203 | ||||
Vertical Grinder | mm | 152x100x50 | ||||
Speed of Grinding Spindle | RPM | 1000-1400 | ||||
POWER OF SPINDLE MOTOR | ||||||
Horizontal head Spindle Motor | K.W / H.P | 15/20 | ||||
Vetical head Spindle Motor | K.W / H.P | 7.5 / 10 | ||||
CNC SPECIFICATION | ||||||
Crossfeed Rapid feed rate | mm/min | 3000 | ||||
Cross/vertical infeed least input increament | mm | 0.001 | ||||
Rapid vertical rate | mm/min | 3000 |
