Achieve precision and versatility in surface grinding with our VERTICAL SURFACE GRINDERS. Engineered for optimal performance, these machines offer a reliable solution for a wide range of surface grinding applications. Our vertical surface grinders deliver superior results, ensuring accuracy and smooth finishes on your workpieces. Whether you're in manufacturing, machining, or the broader metalworking industry, our vertical surface grinders are equipped with advanced technology and robust construction for exceptional grinding performance. Elevate your surface grinding capabilities with our high-quality vertical surface grinders, designed to meet the evolving demands of modern industrial applications.

FEATURES:
  • Compound table design with column fixed to the bed provides versatile operation.
  • All cast iron components are well designed and heavily ribbed for the best rigidity and dampening capacity.
  • The lubrication system supplies oil to guide ways and lead screws as the machine operates. This ensures all the critical components are lubricated with the right amount of oil at all times.
  • All hand wheels, levers switches are conveniently grouped at the front of the machine for convenient operation of the machine.
  • All slide ways and electrical switch box are sealed from dust, chips and coolant for easy maintenance and longer life of the machine.
  • Hydraulic power unit and coolant tank are separated from the machine.
  • Independent lubrication system to the guide ways of the table and grinding wheel head (in Hyd. models only).


Standard Equipment:
  • Wheel flange
  • Flange puller
  • Grinding wheel
  • Standard hand spanner
  • Clamp bolts & table guards
  • Table mounted wheel dressing block.

Optional:
  • Machine lamp
  • Diamond dresser
  • Coolant system with tank
  • Wheel balancing stand with arbor.
  • Fine feed for cross / vertical movement
  • Wheel dresser mounted on wheel head
  • Antifriction material for guide ways (TURCITE-B)

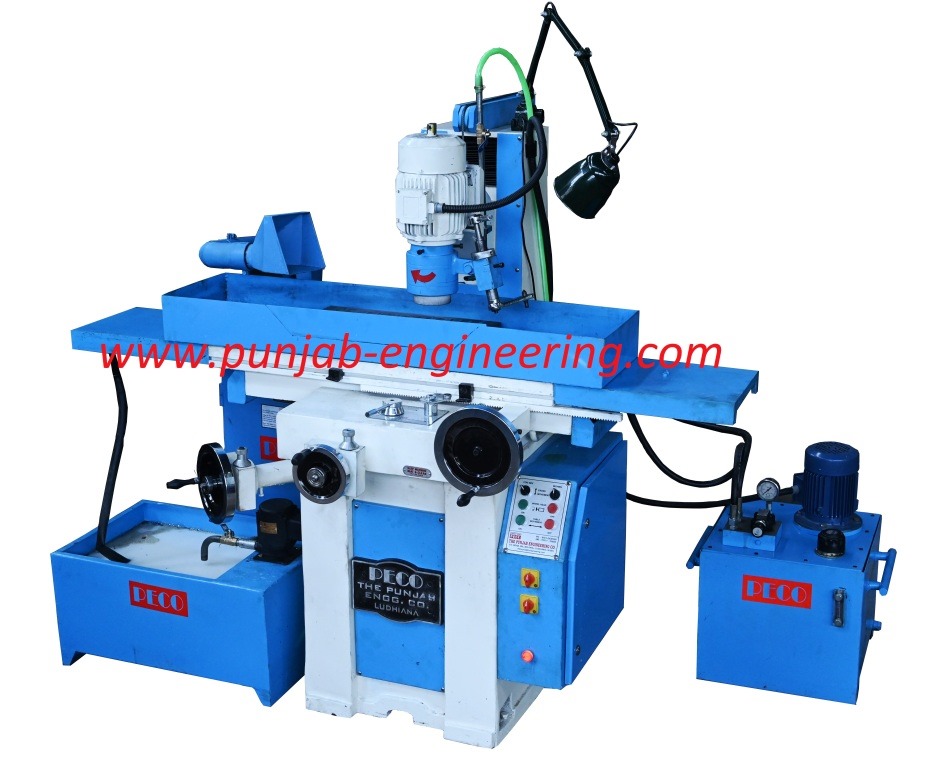

verticle surface grinders

Technical Specification of Horizontal Surface Grinding Machine (Prime Series)
Hand Driven(Manual) with Oil Dip, Auto-Electrical & Hydraulic
  DESCRIPTION UNITS PECO-200 PECO-250 PECO-300
TABLE Working surface MM 200 x 500 250 x 600 300 x 600
  Longitudinal traverse (Max) MM 530 630 630
  Table traverse per rev. Of hand wheel MM 100 100 100
  Max Table Speed m/min 1.5-18 1.5-18 1.5-18
   No. of T slots NO. 1 2 2
CROSS FEED Total cross traverse MM 220 270 320
Auto Cross Feed at each Table Reversal   0.5 to 5 0.5 to 5 0.5 to 5
  Movement per rev. of Hand Wheel MM 5 5 5
  Hand wheel graduations MM 0.01 0.01 0.01
  * Fine feed Graduations MM 0.005 0.005 0.005
WHEEL HEAD Vertical Movement MM 310 310 330
  Size of grinding wheel (OD x Width x ID) MM 200 x 13 x 31.75 200 x 13 x 31.75 200 x 20 x 31.75
  Speed of grinding wheel RPM 2880 2880 2880
Capacity between wheel & table (new wheel) MM 275 275 275
  Wheel Head motor KW 0.75 0.75 1.1
WHEEL FEED Movement per rev. of hand wheel MM 1 1 1
  Hand wheel graduation MM 0.01 0.01 0.01
  * Fine feed graduation MM 0.005 0.005 0.005
HYDRAULIC SYSTEM Working Pressure Kg/cm 20 20 20
Tank Capacity Ltrs 75 75 75
  Hydraulic Pump Motor KW 0.75 1.5 1.5
  Table Feed Motor KW 0.75 0.75 0.75
ACCESSORIES Coolant pump motor KW 0.1 0.1 0.1
  * Auto Lubrication motor KW 0.09 0.09 0.09
FLOOR SPACE Length x Width x Height of the machine MM 1710 x 1100 x 1530  1835 x 1210x 1530 2110 x 1320 x 1580
  Length x Width x Height of packing Case MM 2000 x 1250 x 1800  1750 x 1260 x 1800 2280 x 1400 x 1800
